desk top single HDMI connection HD8630-T hotel intelligent control panel

FOB Reference Price:Get Latest Price
US $1-1,000 / Sets | 100 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Canall, Customized Logo
Model Number:
desk top media hub HD8630-T
Type:
desk top media hub HD8630-T
Color:
Black/ Silver/Golden/Champagne/ Customized color
Certificate:
CE/ FCC/ RoHS
Prompt Deliver:
DHL/ UPS/ FedEx/TNT
Application:
Hotel room/ Hotel meeting room/ Modern house/ Company meeting room
SupplyAbility
SupplyAbility:
5000 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
brushed metal single HDMI connection golden HD8630-T hotel intelligent control panel
1 set per box
9 boxes per carton
Port
Shanghai

Since 2009, we Canall have been specialized in the design, manufacture, and supply of media hub to the hospitality industry. With its own factory and R&D team, we assure you of our best quality with best price. Believe it will be a good choice for you to expand your lines.

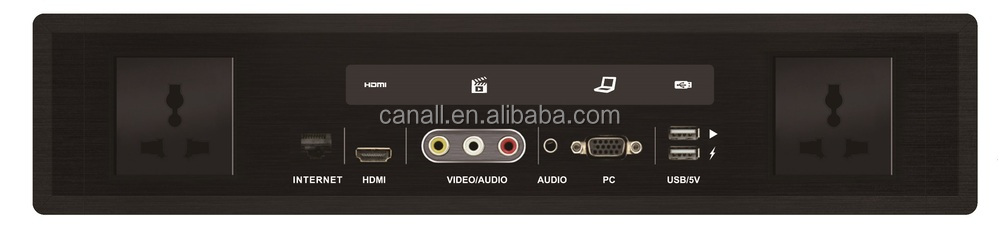

Guest-Facing Device Inputs:



HDMI IN

Composite AV In

3.5mm Audio In

VGA

USB Charge 3A/5V

Bluetooth






Specification:



















HD8630-T





Item

desk top media hub HD8630-T

Basic ports

 AV, VGA, 3.5mm audio, HDMI, USB, Bluetooth

Power outlets

2sets AV 220V, 1set 24h available

Power adapter

Input: 100-240VAC~50/60Hz 0.5A

Output: DC12V 1.5A

Power supply

DC5V 2A

Definition

1080P

Material

Metal with wiredrawing craft

Working temperature

0-40°C

Size

404mm*86mm*65.5mm



1.HD8630-B series are compatible with any TV with an available HDMI port; A Single HDMI cable makes the hotel installation be much easier, more convenient and more cost-effective.

2. Stylish appearance; with touch-sensitive indicator instead of  the traditional button.

3.Truly plug & play; auto-senses guest devices; auto-switches TV to HDMI input and switches TV to the original mode when device is disconnected.

4.Supports serial control for auto-input-switching with hotel TVs, VOD or PPV system without CEC.

5.All-in-one HD8630 puts 2 additional AC power outlets without costly re-wiring.

6.Plays and charges portable electronics devices through USB port, including iPod/iPhone/iPad.

7.Dual-channel technology; support full HD video transmission up to 1080P.

8.Can be embedded in wall or in furniture.



(1326px)







Product features:



Switch the Video automatically

Unique Auto Detect function gives users more convenience. When users connect their own equipment to the HD86, it can auto-choose the audio/video resources to display them. It can avoid the incorrect manipulation and reduce the times of operations.



HD ALL IN ONE

  It converts all of signal into HD signal via only one HDMI cable connecting to the HD TV, thus avoiding many cables appearing behind the TV cause by accessing a variety of personal entertainment devices to TV, and it also makes the construction deployment of products conveniently.



Support USB playback

The HD86 can charge for personal digital devices through the USB interface, it can also transmit the video files of personal digital devices to the TV which can support USB playback.





Abundant audio/video interfaces

Aimed at the variety of personal portable devices, the HD86 front panel provides various interfaces, which are not only the early VGA, AV interfaces, but also the new HDMI, USB, Bluetooth, and Internet interfaces, so that whatever types of personal portable devices can connect to the hotel entertainment system easily, eliminate the worry about not have the relative interface and let guests enjoy the experience of HD.



 Enhance Guest Experiences:

HD8630-T is a mediahub which used for connect various digital equipment to the HD TV in hotel. It is "All to HDMI" program considering the hotel customers' HD needs and convenience for the work progress. It converts all of signal into HD signal via only one HDMI cable connecting to the HD TV, thus make the work progress easily.





Power outlet selection:

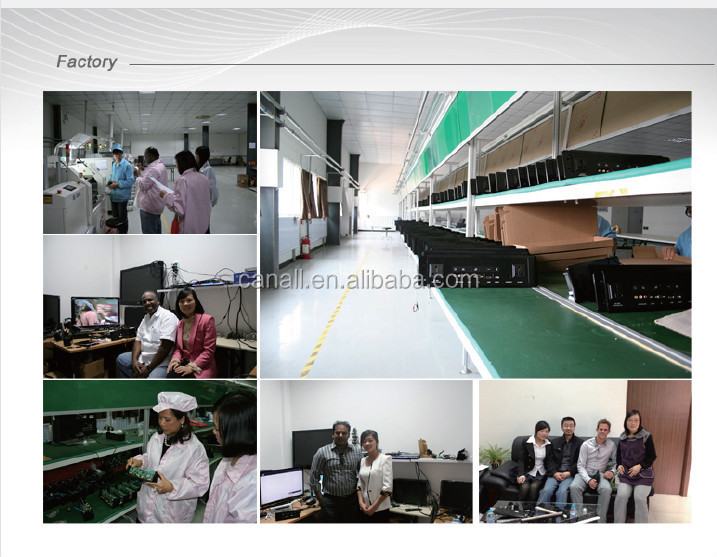

Factory Image:








Payment & Delivery:

QQ20140529092823















Certificates:

RoHSCE 2CE 1FCC



Successful Cases:

-1-3-2
